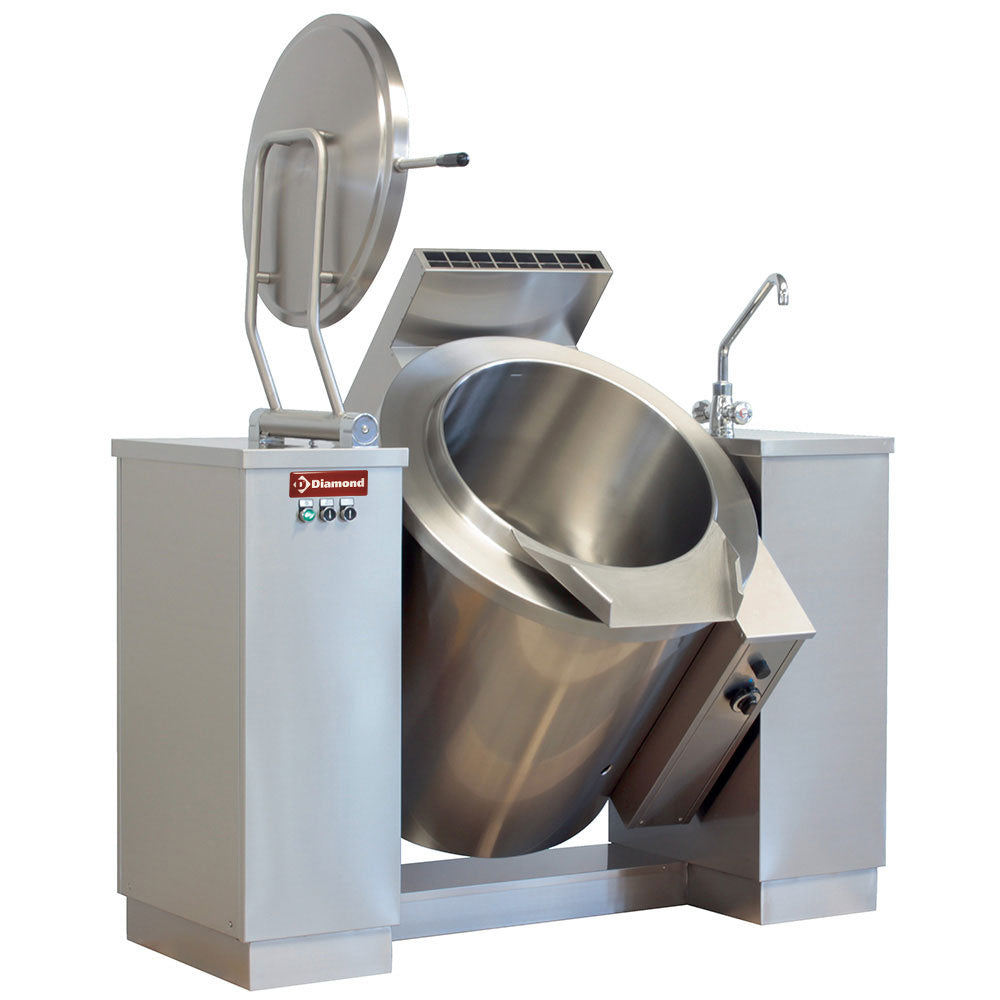

Gas Kippkochkessel 200 Liter, indirekt beheizt

• Tank diameter 760 mm, depth 500 mm.
• Deep-drawn" tank, bottom made of polished AISI 316 stainless steel (25/10 mm thick) wall made of 304 stainless steel (20/10 mm thick). Indirect heating, double jacket made of 304 stainless steel (20/10 mm thick).

• Made of AISI 304 stainless steel, version on AISI 304 stainless steel columns (delivered with floor fixing kit). Covering: made of AISI 304 stainless steel (10/10 mm thick). Work surface: made of AISI 304 stainless steel (15/10 mm thick).
• Deep-drawn" tank wall made of 304 stainless steel, bottom made of polished AISI 316 steel, resistant to salt corrosion and wear. Water tap for filling the tank.
• Motorized tank tilting. Operation on the front side.
• Deep-drawn" cover made of 304 stainless steel, self-compensating hinges allowing gradual closing and opening.
• Indirect heating, double jacket tank made of 304 stainless steel, filling by the safety group and control valves of minimum/maximum level of the double jacket. Pressure control of the double jacket by a 0.45 bar valve, with pressure gauge and vacuum valve.
• Gas heating by 304 stainless steel tubular burners with stabilized flame, regulation by thermostatic valve.
• Safety thermostat, preventing water direction operation in the double jacket, as well as an operating pressure switch.
• Working temperature up to 100°C.

Technische Daten
